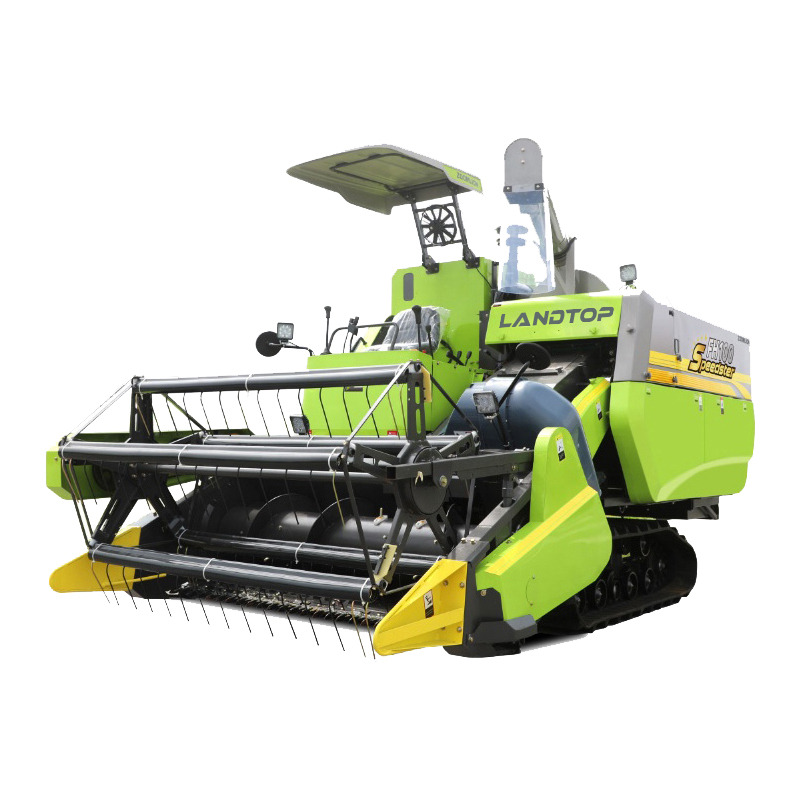

Chinese Mechanized Harvesting Machine Rice Landtop Smarter Performance Price

1.0 Sets
MOQ
Chinese Mechanized Harvesting Machine Rice Landtop Smarter Performance Price
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Condition: New
Application: Rice
Number of Rows: 2
Working Width(mm): 1700 mm
Machine Type: Combine Harvester
Type: Combine Harvester
Usage: Grain Harvester, Other
Weight: 3020 KG, 3020/3160kg
Certificate: ce
Key Selling Points: High Safety Level
Warranty: 1 Year
Marketing Type: Ordinary Product
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Warranty of core components: 1 Year
Core Components: PLC, Engine
Showroom Location: Turkey, United Kingdom, United States, Italy, France, Indonesia, Pakistan
Applicable Industries: Farms
Structure type: Full-feeding, Crawler Type
Designation and model: 4C6-100M22
Structure: Four-cylinder, in-line, water-cooled,
Rated power: 73/73.5kw
Rated speed: 2400r/min
Dimension: 4880*2520*2840mm
Header width: 2200mm
Feed amount: 18t/h
Minimum clearance above ground: 300mm
Informação básica
Certificação: ce
Model Number: 4C6-100M22
Condições de Pagamento e Envio
Packaging Details: Wood box;Iron frame
Supply Ability: 500 Set/Sets per Month
Descrição de produto
Products Description
Product Feature
♦High Efficiency ●It is equipped with a high-quality 100 hp engine, with strong power, HST of 45 displacement equipped with 80 speed-increasing gearbox (9.4km/h), high transmission efficiency and fast operating speed; ●The length and width of the cleaning screen has been increased, with stronger cleaning capacity and high efficiency; ●It as a an original patent technology of the header conveying reverse device in China, being able to quickly deal with the feeding plug fault. ♦High Reliability ●The support wheel has been newly upgraded, with greater bearing, better pressure lubrication and reliability; The wheel body is widened, and the contact area with the crawler has been increased by 16%, and the service life of the crawler is longer; ●The miscellaneous auger drive increases the diameter of the lifting cylinder, strengthening the structure of the gearbox and being more reliable to be used; ●The stainless steel is used for the threshing system, improving wear resistance and the service life of parts. ♦High Adaptability ●The machine height has been reduced and the center of gravity layout has been optimized, making climbing and transition more stable and flexible for the machine. The eight beam structure is adopted for the chassis, without mud plugging, being better to pass the mud field; ●It is equipped with a new cab, and the space, vision, interiors, air conditioning and other configuration have been comprehensively upgraded. It is dust-proof, noise reduction, insulation, being more comfortable to be operated; The layout of the control handle has been optimized, being more in line with the ergonomics.
Product Paramenters
Structure type
Full-feeding, Crawler Type
Designation and model
4C6-100M22
Structure
Four-cylinder, in-line, water-cooled,
Rated power
73/73.5kw
Rated speed
2400r/min
Dimension
4880×2520×2840mm
Weight
3020/3160kg
Header width
2200mm
Feed amount
18t/h
Minimum clearance above ground
300mm
Theoretical operating speed
Low speed 0-4. 5, high speed 0-7. 5
Productivity per operating hour
0. 3-0. 7hm 2 /h
Fuel consumption per unit area
≤32kg/hm 2
Fuel tank capacity
110L
Type of cutter
Standard typeⅡ
Type of header auger
Spiral blade + eccentric telescopic rod type (floating type)
Main roller(O.D.×length)
Φ538×1290
Auxiliary roller(O.D.×length)
Φ538×662
Specification (pitch×links×width)
90 mm× 52 links× 500/550mm
Track distance
1150mm
Cab Type
Sunshade shed /Cab
Gearbox type
45ml/r HST ,80 gearbox
Grain unloading mode
1.8m unloading,1.1 m³ granary
