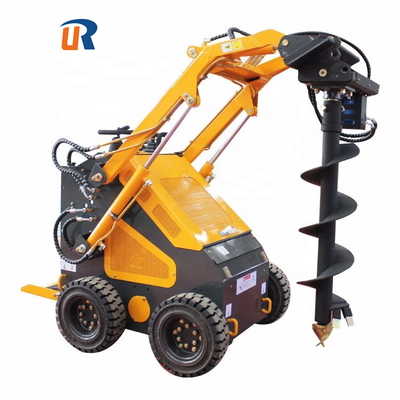

cheap price Sale Chinese Brand New Mini Skid Steer Loader With multiple Attachments
|
Product name |
Skid Steer Loader | |
|
Item |
Metric |
Inch |
|
Max working height(A) |
2115 mm |
83.3 inch |
|
Max pin height (B) |
1856 mm |
73.1 inch |
|
Max dump height(C) |
1460 mm |
57.5 inch |
|
The highest point discharge distance(D) |
388 mm |
15.3 inch |
|
Bucket swing angle(β) |
55° |
55° |
|
Bucket unloading angle(γ) |
30° |
30° |
|
Opening-closing angle(θ) |
25° |
25° |
|
Angle of departure(α) |
8° |
8° |
|
Total height (H) |
1205 mm |
47.4 inch |
|
The height from the ground(F) |
90 mm |
3.5 inch |
|
Wheelbase (G) |
636 mm |
25.0 inch |
|
No bucket length(J) |
1752 mm |
69.0 inch |
|
Total width (W) |
1033 mm |
40.7 inch |
|
Bucket width (K) |
980 mm |
38.6 inch |
|
Total length(L)(with bucket) |
2206 mm |
86.9 inch |
|
Turning radius (R) |
1307 mm |
51.5 inch |
|
Engine |
Rated power |
21HP/23HP |
|||||
|
Rotating speed(rpm) |
3600 |
||||||
|
Noise(Db) |
≤95 |
||||||
|
Hydraulic System |
Hydraulic pressure(Mpa) |
17 |
|||||
|
Cycle time(s) |
Raise |
Dump |
Lower |
||||
|
4.27 |
1.34 |
3.31 |
|||||
|
Performance parameters |
|
Metric |
inch |
||||
|
Load weight (kg) |
200 Kg |
441 Lb |
|||||
|
Bucket capacity |
0.15 m3 |
5.33 ft3 |
|||||
|
Max lifting power |
375 Kg |
827 Lb |
|||||
|
speed |
0-5.5 Km/h |
0-3.4 mlie/h |
|||||
|
Operating weight |
890kg |
1958lb |
|||||
|
Tire type |
Chevron tire |
18*6.5-8 |
|||||
Q: Do you have any advantage ?
A: We are professional wheel loader/ excavator/ backhoe loader/ forklift loader/mucking loader/telescopic loader/tractor manufacturer/exporter with many years experiences. Competitive price, high quality, meet different customers' needs, good after sale service... are our advantages.
Q: How long is your loader warranty time? How to do after sale service?
A: 1 year.We can do after-sales service by all possible means. If necessary, engineers will visit customers and do the after sale service.
Q: Do you have the certification of loaders?
A: Yes, all of loaders are approved by CE, ISO9001, SGS certification, except these other certifications required by customer is agreed.
Q: What’s the payment terms of your company?
A: We always do it by T/T 30% deposit, the other 70% before delivery. L/C payment escrow west union etc. are also available.
Q: How about the delivery time?
A: Usually the delivery time will be within two weeks.For some special products,the delivery time will be 20-30 days.
