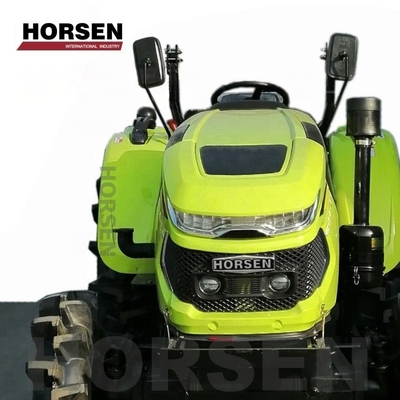

HORSEN 604N
Tiger 50-80 N series
HOT SALE technical features:
| Main parameters | |
| Type | 604N |
| Drive type |
4×4 four-wheel drive |
| Engine | |
| Engine Brand | XINCHAI |
| Engine Type | 4D27ZT32 |
| Fuel tank capacity L | 47 |
| Rating power of engine KW/RPM | 44.2/2400 |
| Fuel consumption @ nominal power (g/kw.h) | contact HORSEN |
| Air Intake Type | Naturally Aspirated |
| Displacement L | contact HORSEN |
| Air filter type/size | OIL BATH or Dry |
| Torque reserve | contact HORSEN |
| Transmission system | |
| Clutch type/size | One-piece,dry,double-action |
| No. of gears (F+R) | 8F+2R |
| Shift method | mechanical sleeve |
| Max. speed | CONTACT HORSEN |
| Gear position | side position |
| Hydraulic system | |
| Hydraulic output flow rate (L / MIN) | contact HORSEN |
| Hydraulic output valve | 1/2 |
| Hydraulic filter types and capacity | contact HORSEN |
| Working device | |
| Three-point-linkage |
Three-point suspension type 1 |
| PTO Speed |
540/760 or 540/1000 |
| Lifting Capacity (kn) |
Maximum lifting force at 610mm(KN) is 9.5 |
| Tillage depth adjustment | position,float,draft,draft mix control |
| Parameter | |
| The whole machine size (dimensions) mm | 3600×1600×2200(rops)/ (cabin 2700) |
| Min. operation mass | 2100- |
| Wheel tread front/rear (mm) | 1170, 1270/1100-1300 |
| wheel base (mm) | 1860 |
| Mini turning Radius (m) |
Unilateral braking 2.7±0.20/2.85±0.20 Not unilateral braking 3.0±0.30/3.15±0.30 |
| Rated traction force(N) | - |
| Minimum ground clearance (mm) | 360 |
| Air conditioning cab | Optional |
| Front/rear wheel tread | 1000-1350(common1200) |
| tyre size |
6.5-16/11.2-24 8.3-20/12.4-28 |
| Braking and steering | |
| Braking system | hydrostaticpedal control,disc brake, |
| Steering type | hydraulic steering |
| Steering Angle (4 x4) | Front axle Max.Steering angle 45° |
|
(options: all these types can Optional for swing drawbar, front/rear ballast) This parameter table is for reference only, everything is based on actual products |
|
