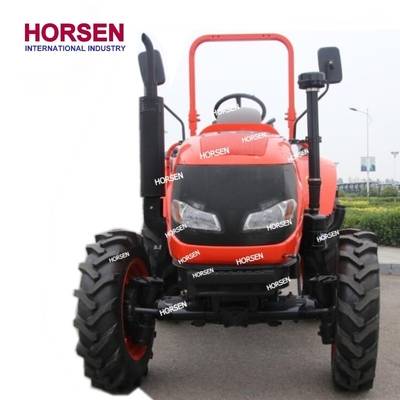

FL454
FL35-50 series
HOT SALE technical features:
| Main parameters | ||
| Type | FL454 | |
| Drive type | four-wheel drive |
|
| Engine | ||
| Engine Brand | ||
| Engine Type | QC495T45 | |
Max. Torque (Nm @ engine rpm) |
170~175/1700 | |
| Fuel tank capacity (L) | 38L+22L=60L 48L+22L=70L |
|
Rating power of engine KW/RPM |
33.1/2400 | |
Fuel consumption @ nominal power (g/kw.h) |
≤248 | |
| Air Intake Type | Natually-Aspirated | |
| Displacement L | 4/2.977 | |
| Air filter type/size | ||
| Torque reserve | 18% | |
| Transmission system | ||
| Clutch type/size | One-piece,dry,double-action/10 inches |
|
| No. of gears (F+R) | 8F+4R/8F+8R/12F+12R | |
| Shift method | mechanical sliding sleeve |
|
| Max. speed | 34.78 | |
| Gear position | side position | |
| Hydraulic system | ||
Hydraulic output flow rate (L / MIN) |
38.4 | |
Hydraulic output valve |
One group/Two groups/Three groups/Simple hydraulic output |
|
Hydraulic filter types and capacity |
wire mesh/63μm | |
| Working device | ||
| Three-point-linkage | 1 Type/2 Type (Optional) |
|
| PTO Speed | 540/760rpm 540/1000rpm(Optional) |
|
| Lifting Capacity kn | 9KN/15KN(Enforced lift) |
|
| Tillage depth adjustment | Draft, position,position and draft mix control/position,float(Enforced lift) |
|
| Parameter | ||
The whole machine size (dimensions) mm |
3790×1520×2130 3790×1620×2130 |
|
| (kg) Min. operation mass |
With cab | 2300 |
| Without cab | 2120 | |
| Wheel base (mm) | 1992 | |
| Mini turning Radius (m) | 3.8 | |
| Rated traction force(N) | 11.3 | |
| Deck | Flat Deck | |
| Minimum ground clearance (mm) | 325 | |
| Heat ventilation cab | Optional | |
| Front/rear wheel tread | 1200/1200 1250/1300 (common 1300) |
|
| tyre size | 8.3-20/12.4-28 | |
| Braking and steering | ||
| Braking system | Wet type,disc brake |
|
| Steering type | hydraulic steering |
|
| Steering Angle (4 x4) |
|
|
(options: all these types can Optional for ROPS ,Sunshade,swing drawbar, front/rear ballast,cabin) |
||
ABOUT HORSEN INTERNATIONAL INDUSTRY
Shandong Horsen international industry co.,ltd . is a professional tractors and other agricultural machinery manufacturer integrating design,manufacturing ,sales and service. Horsen products cover 25hp to 300hp tractor, tractor implements,combine harvesters , agricultural machinery, farm machinery,forest machinery, garden machinery Horsen as a professional machinery equipment manufacturer in China, Horsen has committed itself to provide all-round solutions to global modern agricultural mechanization. Horsen has integrating high-end products and technologies resources around the world by upgrading of technologies, quality , service and bring forth new idea to creative innovative products as to improve reputation and market share of HORSEN in the world step by step.
After-sales service polices:
There are over 70 dealers and service channels covering all the market area. We take "satisfy the customers" as our target, provide "3 Full" (Full course, Full time, Full hearted) service.
