1.The farm tractor is equipped with brand diesel engine, dry-friction, dual stage and constant engagement cluth, hydraulic steering, three point linkage.rear mounted, semi-independent PTO speed 540/760 or 540/1000, two way hydraulic output
2.Optional parts for the tractor: Rops, Sunshade, Cabin with heater,muti-way valve,swing draw bar,front ballast,rear ballast,shuttle shift ect.
3. All kinds of attachments available: front end loader, back hoe,snow blower, snow blade, snow sweeper,rotary tiller,back hoe,front end loader,wood chipper,log splitter,trailer ect.
Technical Parameters of Tractors
| Model | 504 | ||
| Type | 4WD Wheeled Type | ||
| (mm)Dimensions of Tractor | Length (to front ballast) | 3150 | |
| Width | 1450 | ||
| Height (to the exhaust vent) | 2030 | ||
| Tread | Front Wheel | 960, 1220(usual) | |
| Rear Wheel | 960, 1160, 1200, 1300 | ||
| Axle Base | 1715 | ||
| Min.Ground Clearance | 360 | ||
| Mini operational weight (kg) | 1400 | ||
| Engine | Model | KM3T30 | |
| Type | Vertical,3-Cylinder,Water Cooled and 4-stroke | ||
| Rated Power(kw) | 35.8 | ||
| Rated speed (r/min) | 2300 | ||
| Fuel | Diesel | ||
| Tyre | Front Wheel | 6.00-16 | |
| Rear Wheel | 9.5-24 | ||
| PTO | Type and Rev | Semi-independent Type 540/760 or 540/1000 | |
| Spline Size | I35 Rectangle Spline with 6 teeth | ||
If any information not be included in above sheet, pls kindly click here to know more.

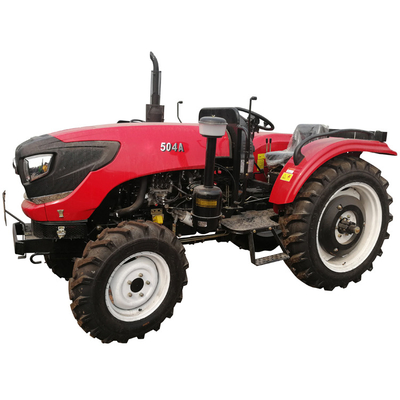

Detailed Images about Tractors
You could click below photos to know more information about each tractor:
If you are interested in above farm machinary or more farm implements, pls kindly click here.
-Various implements:
The tractor can equipped with front end loader (include loader, 4 in 1 loader, forklift, woof fork, soft hand)
Backhoe, wood chipper and agricultural machinery (include disc harrow, Cultivator, Slasher Mower, Trailer,Plough, Disc plough, Disc harrow, Rotary tiller etc)
-Color
Any color can be acceptable.
-Warranty time and the Spare parts
1.We supply 18 months long warranty time.
2.The Easy-damage parts, we will send you together with the tractor for free.And in warranty period, if the spare part is not work because of the quality, we will send you new parts for free.
3.We will send you the tool box for free
-Payment terms:
1. 30% T/T as deposit ,70% T/T befroe shippment
2. L/C at sight
1. Full assembly packing: It is suitable for full containers. Sometimes to save shipping space and sea freight, we will take down the wheel and canopy which is eary to assembly.
2. Iron crate frame packing: It could save most shipping space, but it need longer time to assembly, for heave machinary, sometimes it need some equipment to assembly like forklift.
Weifang Rebon Group established in 2007 year, with more than 10 years' rich experience in production and export business.
Our main products are tractor,haverster,farm implements. All of our goods full passed ISO9001 International Quality Certification system and China 3C Quality system.
We are a professtional manufacturer of parts, set design,development,manufacturing as a professtional manufacture. We focus on a series of new styles, a wide range of diversity,resonable price and on-time delivery.
WHY Choose Rebon?
(1) 11 years Agriculture Machines Manufacturing and export Experiences.
(2) Quick and Safe Delivery.
(3) Experienced Service Team and Technology support.
(4) Provide OEM and ODM Services.
(5) Full range products for choice and one-stop purchase.
(6) Competitive Price Attractive designed, good performance High Good Quality.
Jessica
Sales Manager
Weifang Rebon Group Co., Ltd.
Email: jessica (@)rebon-group.com M.P.:86-187-5368-7350 (whatsapp)
ADD: NO.666,Chuangxin Street,Gaoxin District,Weifang ,Shandong ,P.R. China
We are waiting here for any question or inquiry from you, and will come back at the first time. Thank you!
