§ Brief Introduction:

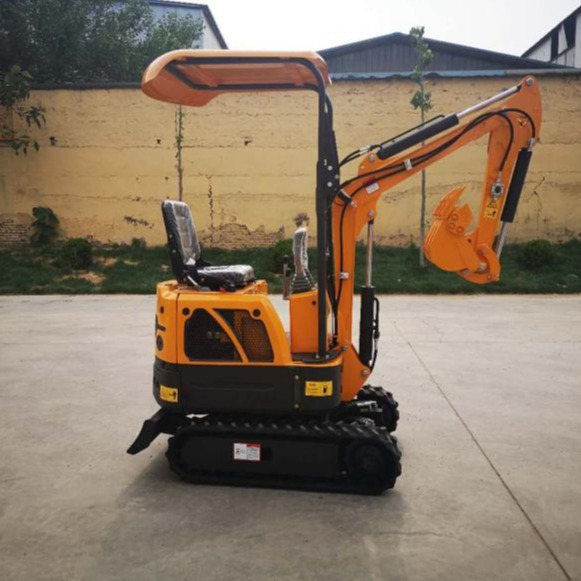

§ This excavator is designed for small works, small projects, in garden, farmland, municipal works,vegetable
§ greenhouse, digging trench It is with small engine, simple design, easy to maintain..
Economical tractor Jiayang-E series
E series tractor is a economical choice for small farmland ,It is compact size only 1m wide,light weight 900kg ,with 6+1 gear box and power steering ,3-point hitch and 540rpm PTO suitable for current implements ,Very low cost but durable design .
|
Model |
E2508 |
E3508 |
E4508 |
|
Drive type |
4x4 |
4x4 |
4x4 |
|
Wheelbase(mm) |
1400 |
1400 |
1400 |
|
Ground Clearance(mm) |
310 |
310 |
310 |
|
Engine |
3-cylinder diesel engine 25hp |
4-cylinder diesel engine 35hp |
4-cylinder diesel engine 45hp |
|
Rated speed(r/min) |
2300 |
2300 |
2300 |
|
Gear Box |
(3x2)+1 |
(3x2)+1 |
(3x2)+1 |
|
Braking System type |
Mechanical brake |
Mechanical brake |
Mechanical brake |
|
Steering Gear Type |
Power steering |
Power steering |
Power steering |
Standard tractor Jiayang-S series
S series tractor is a ideal choice for small and middle farmland ,It is compact size with adjuatable wheel tread from 960 to 150cm,suitable for different application. With 8+2 gear box and power steering ,3-point hitch and 540/760rpm 2-speed PTO suitable for current implements ,Air brake system equipped for trailer and other implements.
|
Model |
S2508 4WD |
S3508 4WD |
S4508 4WD |
|
Rated Power (HP) |
25 |
35 |
45 |
|
Engine |
KM385 3- Cylinder diesel engine |
KM4l22 4-Cylinder diesel engine |
KM490 4-Cylinder diesel engine |
|
Clutch |
Single dry type |
||
|
Steering |
Power steering |
||
|
Brake |
Air brake |
||
|
Three point Hitech |
Category 1 |
||
|
Structure Weight (KG) |
1350 |
1450 |
1570 |
|
Dimension (MM) |
2550*1080-1560*1250 |
2550*1080-1560*1250 |
2550*1080-1560*1250 |
|
Wheel Base(MM) |
1600 4wd |
1650 4wd |
1700 4wd |
|
Tread |
960-1500 optional |
||
|
Tyre Size |
6.0-12 / Rear: 9.5-16 |
||
|
Rated Speed (R/MIN) |
2200-2400 |
||
|
PTO Model |
35*6 Teeth , 540/760 rpm 2- speed |
||
|
Gear Box |
F8+R2 |
||
|
Min Ground Clearance (MM) Front ballast Rear ballast |
320 6pcs x8kg 2pcsx20kg |
||
Luxury tractor Jiayang-L series
L series tractor is a luxury choice for small and middle farmland ,It is compact size with adjuatable wheel tread from 960 to 150cm,suitable for different application. With 8+8 shuttle gear box , power steering ,3-point hitch and 540/760rpm 2-speed PTO suitable for current implements ,Air brake system equipped for trailer and other implements.
8+8 shuttle gear box make the shift from forward to backward very easy. Daul cultch transmission equipped,PTO will be Independent ,it will have a better work
result .Complete side gear shift lever offer a rich driver space and comfortable drive feeling,Instrument Cluster for a easy an clear control .
Luxury die-cast headlight, long lifetime and Energy saving.
2-SETS hydraulic outlet for implements which need hydraulic driven .
It is a beautiful scenery with streamlined hood and full coverage of driver position
All our tractors can add front 3-piont hitch and front PTO
